Energy transferred Isolated USB solutions

IFTools design Energy transfer USB, RS232 and RS422/RS485 solutions, these unique high voltages Isolation from 6KV EN60601-1:2007 certificated for the HVD 4KV for the USB Cable and 2.5V for the Serial Isolator.

USB Isolated solutions

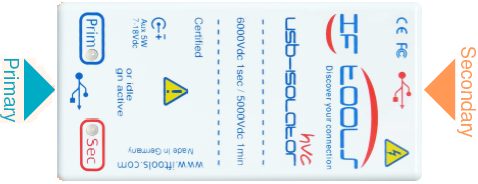

Unique high 6 kV isolation for data and energy together with an unbeatable high working range recommend it for very sensitive and critical applications.Certified acc. EN60601-1:2007The tool for professionals Available with Type B and Type Mini-B connector.Extra save and easy usage. Just exchange the USB cable for the isolator cable — no further connections needed.Simply ingenious!
USB speed
Full speed, low speed – auto detected

Isolation
6000 Vdc 1sec, 5000 Vdc 1min

Certification
EN60601-1:2007, CE, FCC, USB certified Gold Tree Interoperability Test

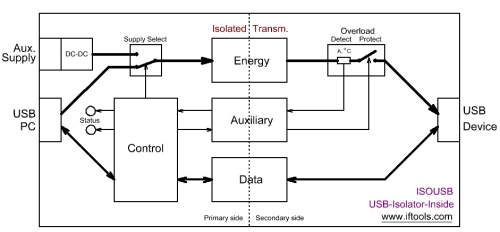

Energy transfer
300 mA on secondary port, more with optional
power suppl

Auxiliary voltage input
Yes, for > 300 mA on secondary port

Design
Robust isolating housing with countersunk USB ports against direct touching		 USB speed
Full speed

Isolation
4000 Vdc 1sec, 2500 Vdc 1min

Certification
EN60601-1-2, EN55011, CE, FCC


Energy transfer
400 mA on secondary port


Auxiliary voltage input
no

Design

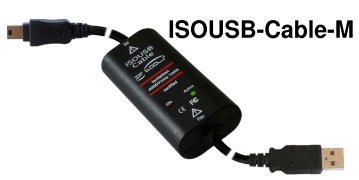

encapsulated housing in the middle of an USB cable
