Network Isolators

EMOSAFE network isolators are utilized for copper based network connections in the private, public or industrial sectors.
They protect a connected device against external voltages and attenuate low-frequency signal components.
Network isolators are used mainly in medical technology. In their isolation structure they comply with the high requirements that are placed on galvanic isolation equipment in this sector.

All EMOSAFE network isolators have a voltage strength of at least 4kV AC and have 2 MOPP according to IEC-60601-1.


Installation Variants	Model / Data Sheet	Transmission Rate	Cable Outlet

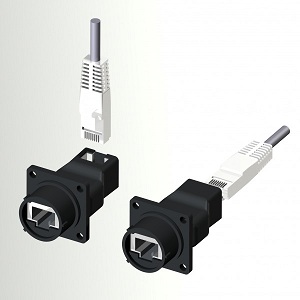

	EN-10H	10/100 Mb/s	horizontal
	EN-10V	10/100 Mb/s	vertical
	EN-10HG	10/100/1000 Mb/s	horizontal
	EN-10VG	10/100/1000 Mb/s	vertical

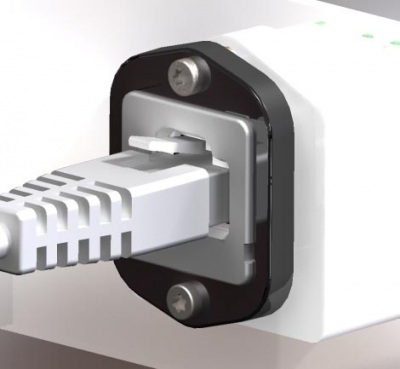

	EN-50HG-Y	10/100/1000 Mb/s	Yamaichi coupling
	EN-50HG-S	10/100/1000 Mb/s	horizontal
	EN-50VG-S	10/100/1000 Mb/s	vertical

Casing Variants	Model / Data Sheet	Transmission Rate	Casing

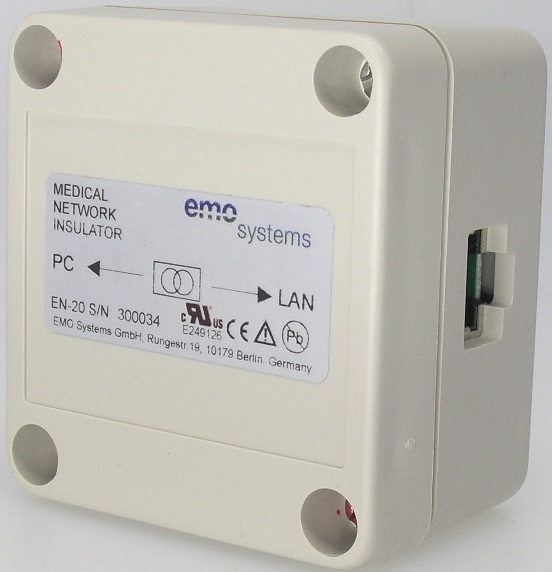

	EN-20G	10/100/1000 Mb/s	Plastic

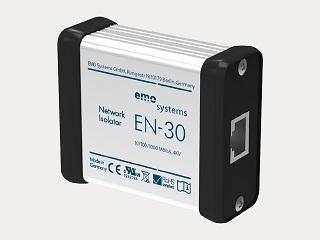

	EN-30	10/100/1000 Mb/s	Aluminium

New Device	Model / Data Sheet	Transmission Rate	Cable Outlet

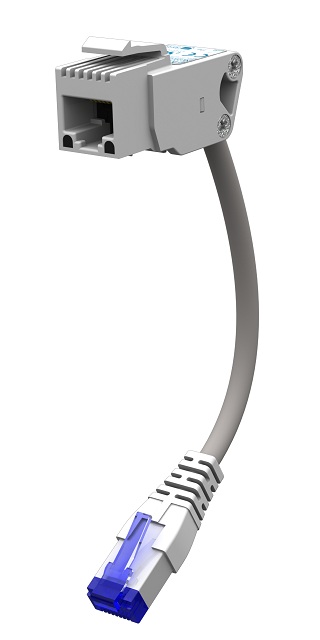

	EN-60	10/100 Mb/s	keystone


We also offer This email address is being protected from spambots. You need JavaScript enabled to view it. according to your specifications.
EMO develop together with you the optimal design, construct all molds and tools necessary for the production which include: preparation of product-accompanying documents, design the of the packaging and taking care of the approvals required. Just Click for more information. or click for This email address is being protected from spambots. You need JavaScript enabled to view it.
